Inner Range IR-995220PE8

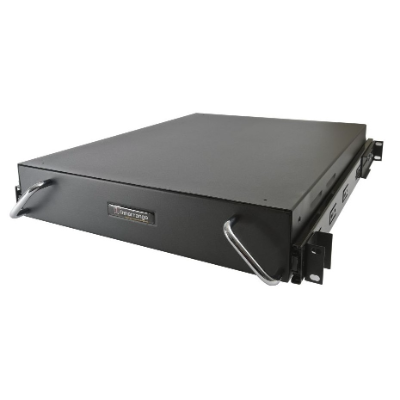

The Inner Range Rack Mount Drawer provides a high-security tamper monitored 2RU rack mounting solution for Integriti system hardware.
It features a truly universal design that allows virtually all Inner Range system Controllers and LAN modules to be installed into a 19” rack equipment cabinet without restricting critical access to cabling, termination of connections or access for commissioning and maintenance purposes.
The Rack Mount Drawer is capable of housing up to two separate internal power supplies with two separate internal 12V, 9Ah sealed lead acid back-up batteries.
Cabling to the drawer is managed via a rear mounted cable tie-down tray with a selection of ''knockout'' style cable entry points. The mains power connection is
via an industry standard IEC connector and the Ethernet network connection is made via a panel mounted RJ45 socket. All other cabling is routed and securely
terminated inside the tamper monitored enclosure.
Servicing is made easy as the entire drawer slides out of the rack providing full installation and service access to all components - without taking the system
offline.

Features
Drawer Features

• 2RU Sliding 19'' Rack Mountable Drawer

• Universal PCB Mounting Plate and Battery Holders

• Sturdy metal drawer with sealed base and welded corners

• Tamper monitored ventilated metal cover

• Rear Cable Tie Down Tray

• Supplied with ball bearing runners to suit front - rear mounting rail spacing of 520 to 740mm - adjustable
  Rear Panel Connections and Cable Entry Routing

• 3 x 2-Way Circular Cable Entry Knockouts, 35mm or 64mm - Supplied with cable entry bushing

• Ethernet Connection - RJ45 Chassis Mount

• Mains Power Connection - IEC 240Vac Mains power connector - Fused

• Assisted Ventilation - Provision for 60mm panel mount fan
