POSMarket SKU: Z17062
Garland 8723EQ + Yellow Earth Style Composite Cable, 250m
| Brand | Generic |
| Packaged Quantity | 1 Roll |
| Type | Data Cable, 2 Pair + Earth 2.5mm Earth |
| Pack Size | 250m |
| Applicable Standards | AS/ACIF S008 |
| Suitable Applications | A range of cables with composite cores have been designed and manufactured to meet individual customer needs. |
| ROHS Compliant | Yes |
| A-Tick (Yes/No) | yes |
| AWG | 22 |
| Stranding (mm) | 7/0.25 |
| Area (mm2) | 0.34 |
| Diameter (mm) | 0.76 |
| Material | TC |
| Material | PP |
| Nominal Thickness (mm) | 0.2 |
| Nominal OD (mm) | 1.2 |
| AWG | 24 |
| Stranding | 7 |
| Area (mm2) | 0.22 |
| Diameter (mm) | 0.2 |
| Material | TC |
| Insulation - Elongation at BBA | >150% |
| Outer Sheath - Elongation at BBA | >100% |
| Tensile Strength Before Aging | >12MPa |
| Max. Conductor DC Resistance @ 20 C | 55Ω/km |
| Min. Insulation Resistance @ 20 C | 1,000M OHMS.km |
| Voltage Test: Conductor to core | 1.5 kV ac/1min |
| Voltage Test: Core to sheath | 3.0 kV ac/1min |
| Operating Temp Range | -15 to 70C |
| Max. Recommended Pulling Tension | 267N |
| Min Bend Radius (Install) | 68mm |
| Approximate Mass(kgs/100m) | 11.35kg/100m |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| MT-MCP2ISE250 | Garland 8723EQ + Yellow Earth Style Composite Cable, 250m | $754.60 | Add to Cart |
.jpg)

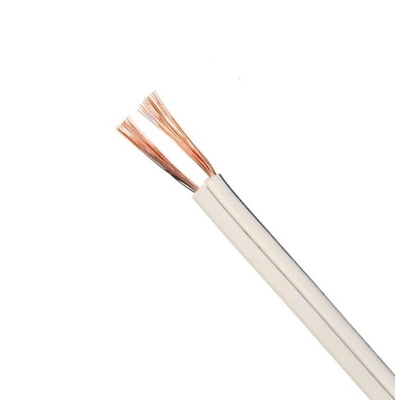

Tensor MT-TSCW24BL(100)
